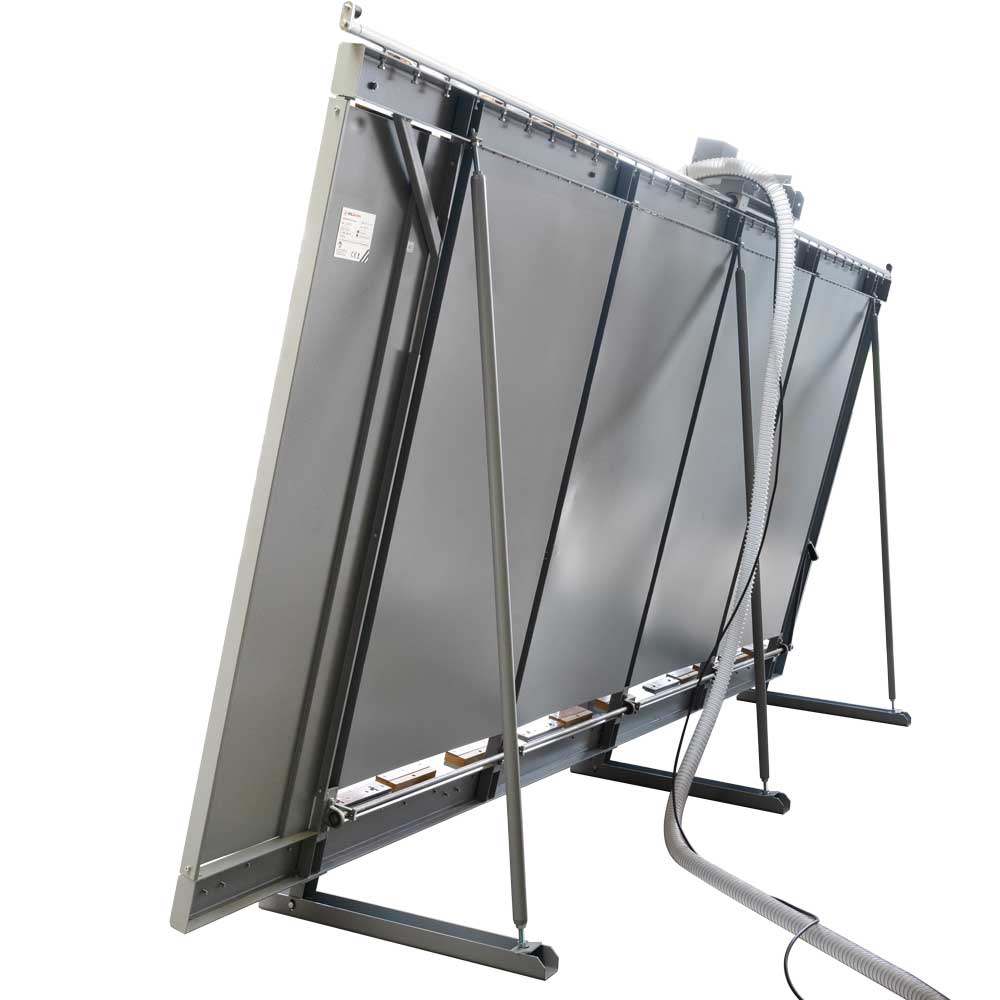

The Holzmann VPS3216ECO 230 V Vertical Panel Saw is a heavy-duty vertical panel saw designed for accurate cutting of large sheet materials and panels. It processes panels up to 3,200 mm wide and 1,600 mm high using a manually adjustable slatted frame and precision saw carriage.
Equipped with a TAS165PRO plunge saw unit, this machine delivers reliable cutting performance for woodworking tasks involving plywood, MDF, particleboard, and other panel materials. The vertical design allows effective handling of large components while keeping the footprint manageable in workshop environments.
Manual controls provide simplified operation for horizontal and vertical cuts, and the saw supports tilt cuts up to 45° for added versatility.
Technical Specifications
Power supply: 230 V / 50 Hz
Motor power: 1,400 W
Max panel width (horizontal): 3,200 mm
Max panel height (vertical): 1,600 mm
Saw blade type: Plunge saw (TAS165PRO) included
Blade dimensions: Ø165 × 20 × 2.5 mm
Sawblade speed: approx. 2,000 – 5,000 rpm
Cutting angle: up to 45°
Min. workpiece length: 520 mm
Min. workpiece width: 230 mm
Machine dimensions: approx. 4,080 × 950 × 2,220 mm
